SV Mk.II (EN 1539) chamber dryer in which flammable substances are released up to 300 °C

Chamber dryers with EN 1539 standard safety equipment

Chamber dryers SV Mk.II (EN 1539) with safety equipment according to industrial standard EN 1539 are suitable for a wide range of production processes (drying, curing, preheating, vulcanization, etc.) during which flammable substances are released (e.g. volatile organic compounds VOC ). These can exist as gases, vapors, liquids, solids or their mixtures and can enter into an exothermic reaction with air when ignited. Typical applications are the drying of molding varnishes, surface coatings and impregnation resins.

The safety concept of the operation is based on the prevention of the formation of explosive mixtures by means of continuous ventilation in the entire working area of the dryer. The standard design of the dryers corresponds to the requirements of the EN 1539 standard for Dryer type A, and for operating area No. 1. The calculated values of the maximum permissible amount of flammable substance (see Technical parameters) were determined for the specified exhaust value and further for the following general parameters of flammable substances:

Flash point Δ LEL=20%/100K
Lower explosive limit LEL20=40 g/m³
100% content of releasable flammable substances from the paints
Zero losses through pre-drying

The values of the maximum permissible amount of the content of releasable flammable substances are calculated in relation to the worst case scenario, i.e. rapid evaporation of the paint over the largest possible surface. At lower drying rates or other types of flammable material being released, larger volumes can be processed per batch. If we know the specific values and parameters of the processed substances and the drying process, we are able to design and optimize individual atypical parameters of the dryer.

SV Mk.II dryers (EN 1539) are characterized by the very precise distribution of temperatures in the working chamber. A wide range of custom modifications, extensive accessories, very short delivery period and quick supply of spare parts are indisputable benefits.

I’m interested in this furnace

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.

sales@lac.cz We’ll reply within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up

Benefits

Easy to install, easy to control
Safety equipment according to industry standard EN 1539
We have spare parts in stock
Custom adjustments
Delivery times as low as 6 weeks
Temperature distribution ∆T 6 °C (for dryers up to 6,000 liters) / ∆T 10 °C (for dryers over 6,000 liters)
Quick run-up to max. temperature
24-month warranty
Easy maintenance

Charge treatment technology

Drying
Vulcanisation
Surface finish hardening
Drying of granulate
Burning-in of electrical components
Preheating of various materials before the next processing
Preheating reusable moulds and semi-finished products
Low-temperature tempering
Drying of moulds and cores
Tempering of rubber and electric components
Firing (of e.g. insulation paints)

Furnace type	Tmax°C	Volumel	External dimensions* (w × h × d)mm	Internal dimensions (w × h × d)mm	InputkW	Flue exhaustm³/h	The maximum permissible amount of flammable substance released in grams at different temperatures**					Max. load capacity of bottomkg
Furnace type	Tmax°C	Volumel	External dimensions* (w × h × d)mm	Internal dimensions (w × h × d)mm	InputkW	Flue exhaustm³/h	100 °C	150 °C	200 °C	250 °C	300 °C	Max. load capacity of bottomkg
SV 650/30 Mk.II (EN 1539)	300	650	1800×2450×1200	1000×800×800	24	200	88	52	33	25	20	150
SV 1001/30 Mk.II (EN 1539)	300	1000	1800×2850×1200	1000×1200×800	24	200	95	57	37	28	23	200
SV 1002/30 Mk.II (EN 1539)	300	1000	1800×2650×1400	1000×1000×1000	24	200	95	57	37	28	23	200
SV 1501/30 Mk.II (EN 1539)	300	1500	1800×3450×1200	1000×1800×800	30	200	104	63	42	32	26	350
SV 1502/30 Mk.II (EN 1539)	300	1500	1800×2750×1800	1000×1100×1400	30	200	104	63	42	32	26	350
SV 1700/30 Mk.II (EN 1539)	300	1700	1800×3350×1400	1000×1700×1000	36	200	108	66	43	33	28	400
SV 2400/30 Mk.II (EN 1539)	300	2400	1800×3350×1800	1000×1700×1400	36	250	137	84	56	43	36	600
SV 3001/30 Mk.II (EN 1539)	300	3000	1800×3850×1800	1000×2200×1400	48	250	148	92	61	47	40	700
SV 3002/30 Mk.II (EN 1539)	300	3000	1800×3350×2200	1000×1700×1800	48	250	148	92	61	47	40	700
SV 3300/30 Mk.II (EN 1539)	300	3300	1900×3650×1900	1100×2000×1500	48	250	153	95	64	49	42	800
SV 4000/30 Mk.II (EN 1539)	300	4000	2000×3650×2000	1200×2000×1600	60	400	217	133	88	67	56	1200
SV 4500/30 Mk.II (EN 1539)	300	4500	2800×2850×2300	2000×1200×1900	60	400	226	139	92	71	59	2000
SV 5000/30 Mk.II (EN 1539)	300	5000	2500×3350×2100	1700×1700×1700	60	400	234	145	97	75	63	2000
SV 6001/30 Mk.II (EN 1539)	300	6000	2700×3850×1800	1900×2200×1400	84	500	287	177	118	90	76	2000
SV 6002/30 Mk.II (EN 1539)	300	6000	2800×3150×2400	2000×1500×2000	84	500	287	177	18	90	76	2000
SV 8000/30 Mk.II (EN 1539)	300	8000	2800×3650×2400	2000×2000×2000	108	500	320	201	136	105	89	2000

*External dimensions are listed without switchboards.
**If chamber dryers are used for drying molding varnishes, the data on the maximum permissible amount of flammable substance for drying the surface can be increased up to 10 times. If chamber dryers are used for drying impregnation resins, the data on the maximum permissible amount of flammable substance for surface drying can be increased up to 20 times.
Subject to technical changes.

Safety equipment according to the EN 1539 standard:

Exhaust fan - extracted air volume 200-500 m³/hour depending on the volume of the furnace
Automatic ventilation flap
Automatic suction flap
Muffle (working chamber) sealing
Electromagnetic door lock
Limit unit in the dryer space ensuring that the drying temperature is not exceeded by more than 10% (set by the customer)
System for checking the minimum suction speed
System for checking the function of the circulating fan
Increasing the furnace performance to maintain the thermal dynamics of the furnace while removing released substances
Ht205 controller

Standard equipment

Resistance heating (heating elements)
Bottom modification for a trolley or smooth bottom
Safety handle to prevent becoming trapped in the furnace’s operational space
“K” type thermocouple
Contactless switching relay for noise-free operation
Door limit switch for the safe opening of the furnace

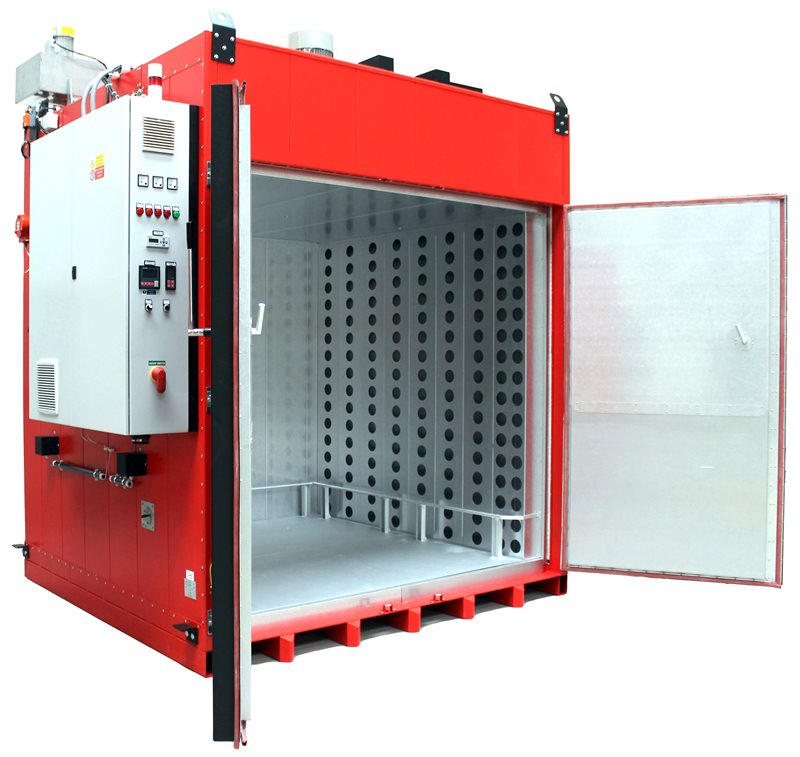

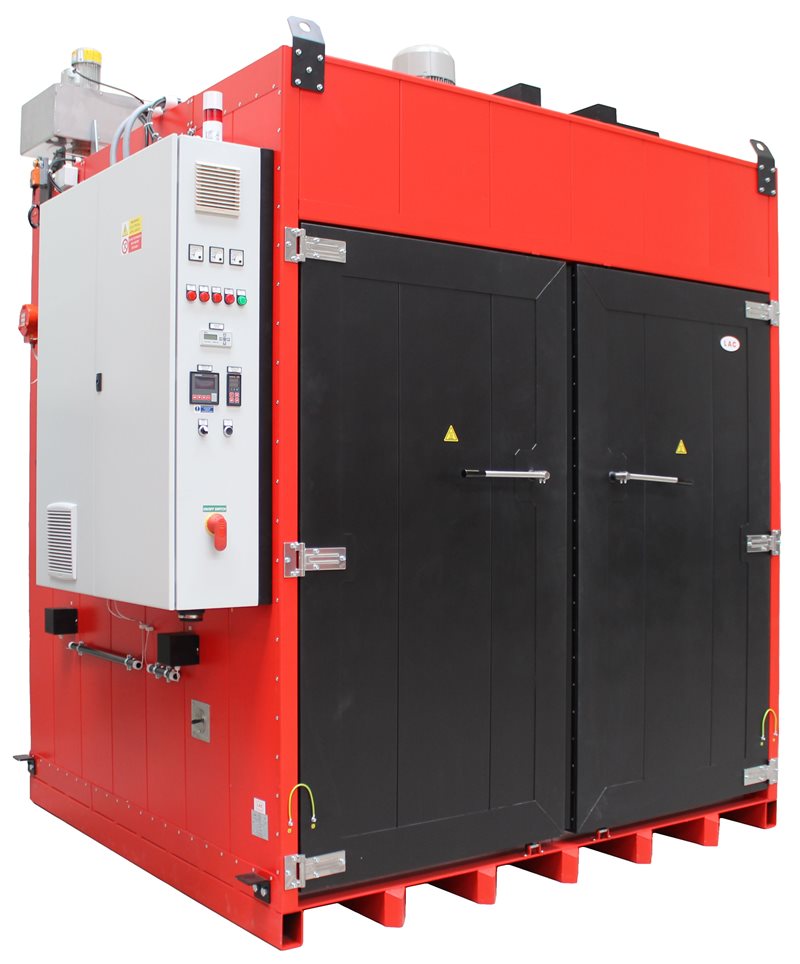

One-wing door manually opened to the right (for volumes up to 4,000 l); two-wing door (for volumes over 4,000 l)
Switchboard on the left side of the furnace

Optional accessories available at additional cost

Optimization of the temperature field to meet the DIN 17052-01 ∆T 4 ° C standard in the internal usable space in case of modification for the flat bottom of the furnace, resp. ∆T 6 ° C in the internal usable space in case of modification for a trolley (in an empty dryer at Tmax, for volumes up to 6,000 liters, a grommet for TUS test and measuring loop calibration is necessary), including a report from measuring
Measuring loop calibration
Grommet for TUS test measuring thermocouples
EIA-485 or LAN interfaces
HtMonit EV set (software + interface)
Tree-channel digital temperature recorder
Ammeters for checking the status of heating elements
Charging trolley with shelves of a steel construction for temperature in furnace to 250 °C (4 shelves up to a volume of 4,500 l)
Loading frame with 4 shelves made of constructional steel (only up to a volume of 4,500 l)
