KSL hardening salt bath up to 1100 °C

For fast heating of steel before hardening without scaling

The KSL hardening salt baths are very easy to operate. They are mainly used for quick heating of steel parts before their hardening without scaling. At the same time, however, you can also use them for hardening in a salt bath.

This furnace is available in our e-shop

eshop.lac.czwith delivery to EU countries.

I want hardening bath

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.

sales@lac.cz We’ll reply within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up

Benefits

Simple to control
24-month warranty
Robustness
Use for heating or for hardening

Charge treatment technology

Hardening
Carburizing
Case-hardening
Salt bath
Tempering of tool steels with protective atmosphere

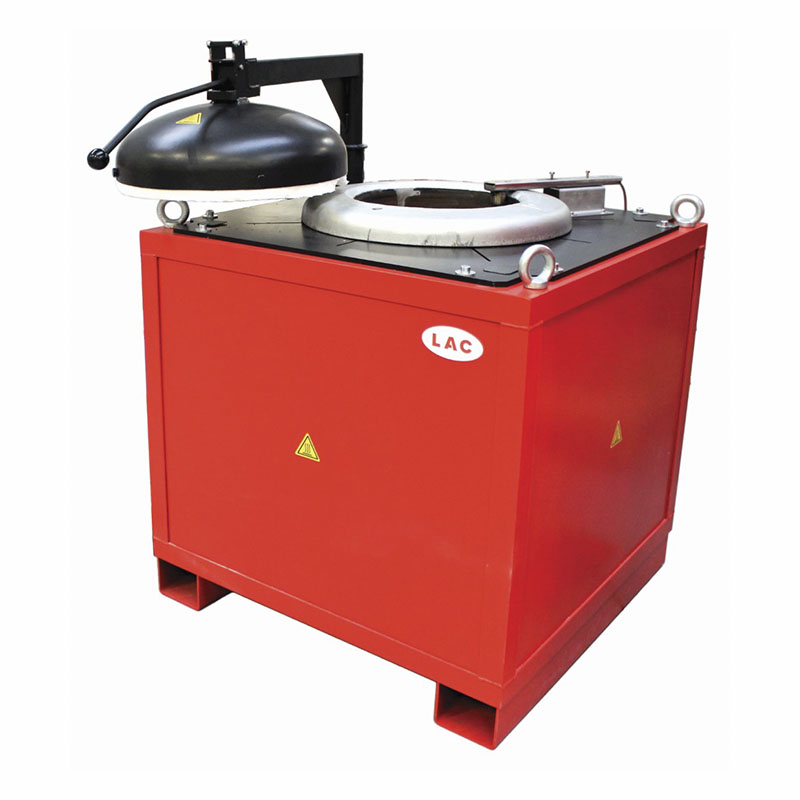

KSL hardening salt bath

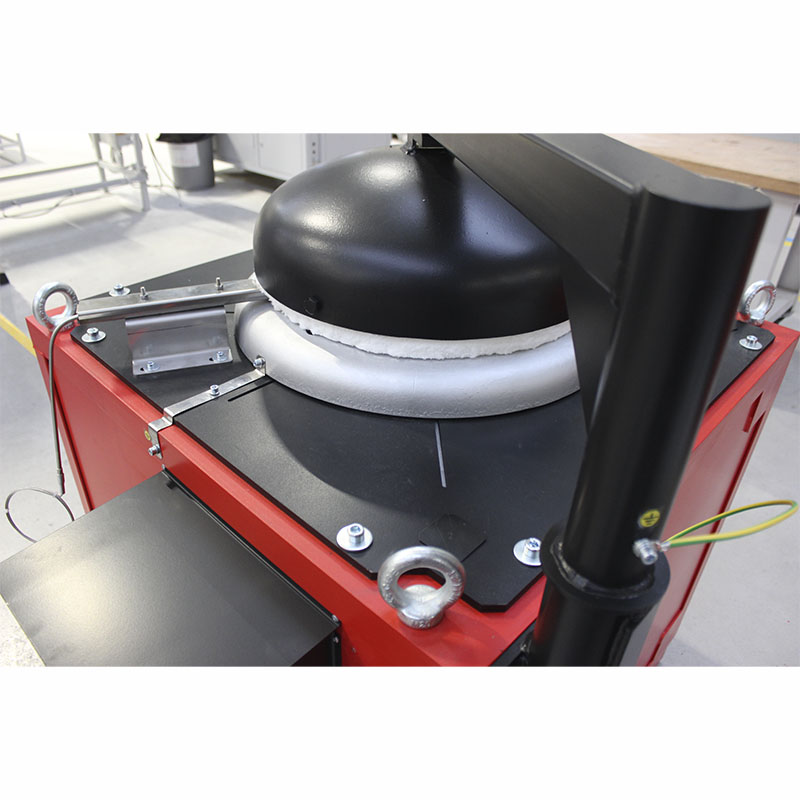

Crucible and charge thermocouple

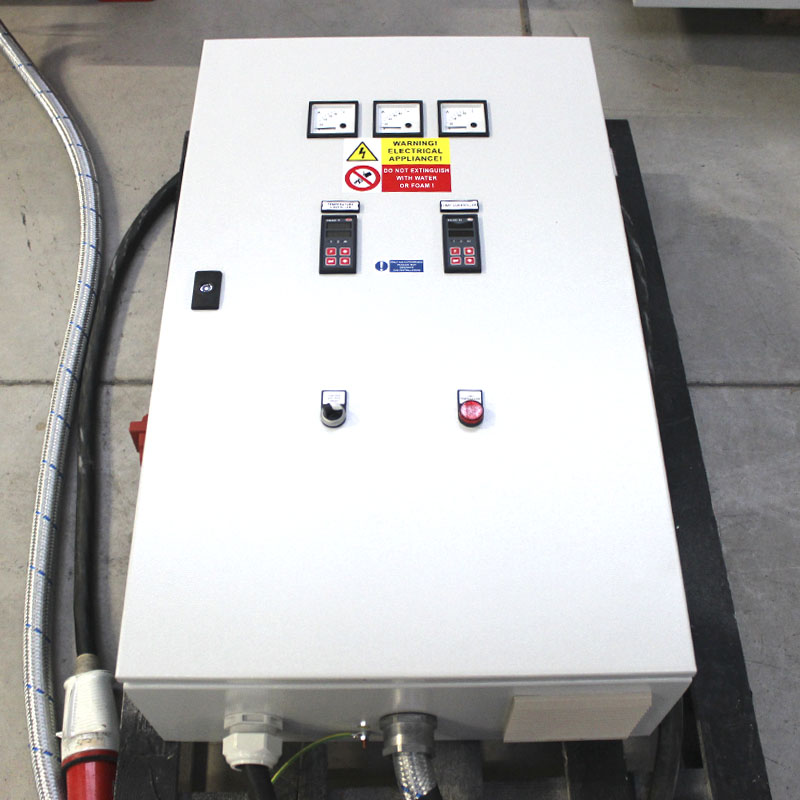

Wall switchboard

Hardening salt bath

KSL hardening salt bath

Crucible and charge thermocouple

Wall switchboard

Hardening salt bath

Furnace type	Tmax°C	Recommended operating temperature range°C	Volumel	External dimensions (w × h × d)mm	InputkW	Weightkg	Protection*A	VoltageV
KSL 20/11	1100	500 - 1000	20	950×790×950	21	570	40/3	400
KSL 40/11	1100	500 - 1000	38	1100×1135×1100	35	650	60/3	400
KSL 80/11	1100	500 - 1000	90	1400×1300×1300	53	730	40/3	400
KSL 360/11	1100	500 - 1000	400	1600×1900×1600	102	2600	200/3	400

* Protection can vary depending on accessories added (at additional cost).
Subject to technical changes.

Standard equipment

Ht40T controller (3 programmes with 10 steps each)
Limit unit
Manual lid
“S” type limiting and controlling thermocouple
Ammeters for checking the state of the heating elements (numbers based on number of phases connected to the heating)
Residual current protector
Connection between the furnace and switchboard, within a metal hose with a plastic protector, length of up to 5 m
Wall switchboard

Optional accessories available at additional cost

Crucible
Charge thermocouple with protective steel tube (with option to connect to a regulation system or an independent display unit of the customer)*
Measuring loop calibration
Connection of the furnace with the switchboard, within a metal hose with a protective metal sheath
Recommended consumable parts – spare parts for insulation and lid attachment
Exhaustion collar

* No warranty is provided for the protective tube, and its service life is approximately one month.
Note: When combining accessories for an extra fee, consult with our technical office
