Chamber furnace for tempering induction hardened parts according to CQI-9 standard

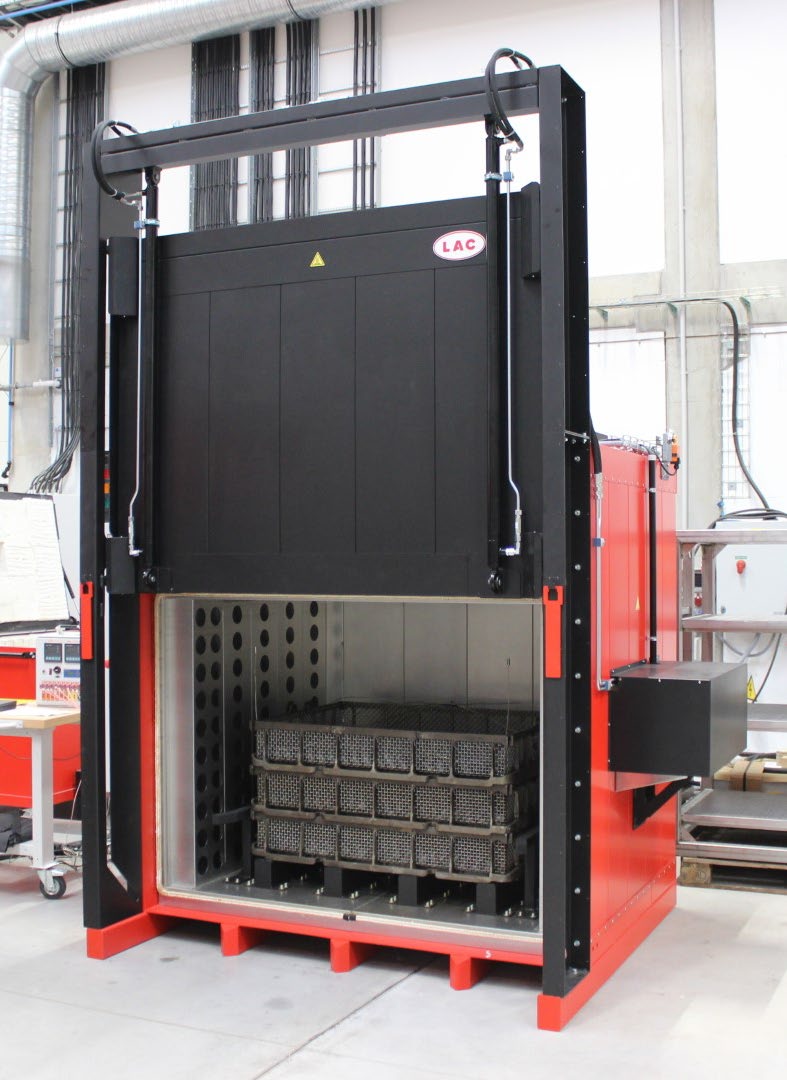

We supplied this SV 2200/30 chamber low-temperature furnace to a major manufacturer in the automotive industry , designed for the thermal tempering process of induction hardened parts at a temperature of 190 °C.
The furnace is used to temper mainly automotive engine components of various sizes and weights placed in charging baskets. For this purpose, the furnace is equipped with a bottom that allows handling of charging baskets using forklifts or low-lift trucks, including profiles for guiding the baskets at the bottom of the furnace. Three charging baskets are stored in the furnace as standard. For easier control and handling of the charge, the furnace is equipped with automatically opening doors with a hydraulic drive.
The furnace is manufactured and supplied in the specification for the special heat treatment process CQI-9, valid for all automotive suppliers worldwide who have concluded a contractual agreement on quality in the automotive supply chain. Its specifics are the optimization of the temperature in the internal usable space of the furnace, measurement of temperatures with calibration measuring instruments according to the CQI-9 standard and preparation of documentation according to the relevant standard.
