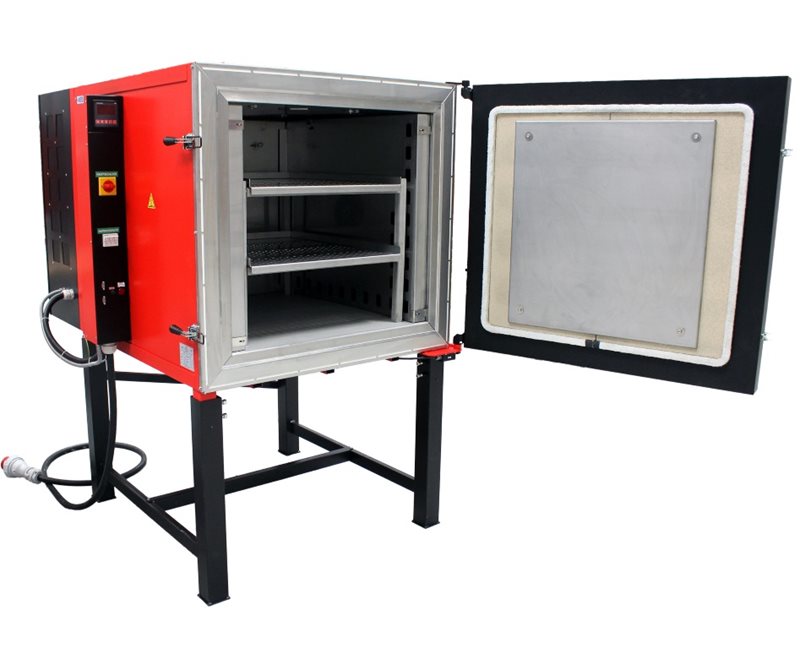

Камерная печь PP для аддитивного производства алюминиевых компонентов up to 450 °C

The chamber furnace for heat treatment of 3D components

The chamber furnace for heat treatment of 3D components produced by additive manufacturing technology which will ensure a process for correct metallurgical properties of metallic alloy.

Processed material type: aluminium

Examples of platform max. dimensions (mm)	Furnace type
100x100	PP 20/45
250x250	PP 40/45
300x300	PP 70/45
400x400	PP 140/45
550x550	PP 270/45
650x650	PP 540/45

Aluminium components produced by the AM technology are processed at a temperature between 150 °C and 450 °C.
The PP chamber furnaces up to 450 °C with forced air circulation and ideal temperature distribution are suitable for pre-heating, artificial ageing, annealing and internal stress relieving.

I want this furnace

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.

sales@lac.cz We’ll get back to you within 24 hours.

Печи на складе Духовки и сушилки готовы к немедленному сбору

Benefits

Easy to install, easy to control
Custom adjustments
Low noise
24-month warranty
Immediate technical support
Forced air circulation
Superb conduction of heat into the charge
Even temperature distribution
Mechanical durability
Chemical durability
Industrial robustness

Heat treatment technology of additively produced charge

Relieving of internal stress

Furnace type	Tmax°C	Recommended operating temperature range in°C	Volumel	External dimensions (w×h ×d)mm	Internal dimensions (w×h×d)mm	Shelfpcs	Input*kW	Weightkg	Protection**	Voltagekg	Max. floor loadkg
PP 20/45	450	200 - 450	20	800×650×1000	300×200×350	–	3,0	115	16/1	230	30
PP 40/45	450	200 - 450	35	850×1450×1050	300×300×400	2	6,0	160	16/3	400	50
PP 70/45	450	200 - 450	70	850×1550×1150	350×400×500	2	8,0	190	20/3	400	80
PP 140/45	450	200 - 450	135	950×1650×1300	450×500×600	2	12,0	300	20/3	400	150
PP 270/45	450	200 - 450	270	1200×1750×1450	600×600×750	2	20,0	580	40/3	400	200
PP 540/45	450	200 - 450	540	1300×1950×1750	750×800×900	2	24,0	750	50/3	400	250

* Fan motor power of the PP 20 is 0,25 kW. For PP 40-140, all temperatures, and PP 270/45, 65 it is 0,37 kW and for model PP 270/85 and PP 540, all temperatures, it is 1,1 kW.
**Protection may vary according to the optional accessories selected.
Subject to technical changes.

Standard furnace equipment

Ht40AL controller
Stainless steel muffle
Stainless steel circulation insert with long service life
Horizontal internal atmosphere circulation
Heating elements located outside the furnace space
2 stainless steel shelves (except for the PP 20)
Manually controlled ventilation flap for cooling the furnace’s operational space
“K” type thermocouple
Contactless switching relay for noise-free operation
Limit switch for safe opening of the furnace
Door manually opened towards the side
Tabletop (PP 20) or free-standing variant (other types)

Optional accessories available for an extra charge

Ht Industry / Ht205 controller
Intake of protective atmosphere (manually or automatically controlled gas intake)
Semi-gastight furnace variant (with a special ventilation chimney)
Graphic temperature recorder (controller and recorder are located in custom control panel on side of furnace)
Automatic ventilation flap for cooling the furnace’s operational space
Optimisation of the temperature field for DIN 17052-1 ΔT10 °C in the internal usable space (in an empty furnace at Tmax)
Measuring loop calibration
RS232 or EIA485 interfaces including software and cabling
Ht-Monit set (LAN+SW interface for PC)
Custom stand
Door opening to the left or right (hydraulic sliding, pneumatically controlled)
Additional shelves
One-handed opening (for models PP 20 through PP 140 inclusive, this is standard equipment)
Controlled or uncontrolled forced cooling (cannot be combined with the semi-gastight furnace version)

Note: When combining accessories (at additional cost), consult with our technical office.
