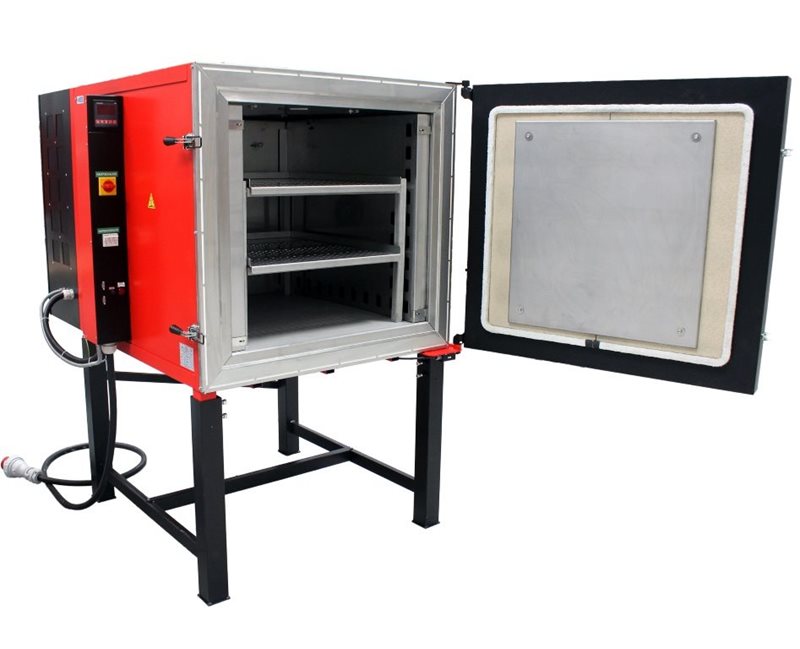

PP chamber furnace for additive manufacturing of aluminium components up to 650 °C

The chamber furnace for heat treatment of 3D components

The chamber furnace for heat treatment of 3D components produced by additive manufacturing technology which will ensure a process for correct metallurgical properties of metallic alloy.

Processed material type: aluminium​

Examples of platform
max. dimensions (mm)
Furnace type
100x100 PP 20/65
250x250 PP 40/65
300x300 PP 70/65
400x400 PP 140/65
550x550 PP 270/65
650x650 PP 540/65


Aluminium components produced by the AM technology are processed at a temperature between 150 °C and 650 °C.
The PP chamber furnaces up to 650 °C with forced air circulation and ideal temperature distribution are suitable for pre-heating, artificial ageing, annealing and internal stress relieving.

I want this furnace

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.
sales@lac.cz We’ll get back to you within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up

Benefits

  • Easy to install, easy to control
  • Custom adjustments
  • Low noise
  • 24-month warranty
  • Immediate technical support
  • Forced air circulation
  • Superb conduction of heat into the charge
  • Even temperature distribution
  • Mechanical durability
  • Chemical durability
  • Industrial robustness

Heat treatment technology of additively produced charge

  • Relieving of internal stress

Technical parameters

Furnace equipment

Furnace type Tmax°C Recommended operating temperature range in°C Volumel External dimensions (w×h ×d)mm Internal dimensions (w×h×d)mm Shelfpcs Input*kW Weightkg Protection**  Voltagekg Max. floor
loadkg
PP 20/65 650 150 - 600 20 800×650×1000 300×200×350 3,0 130 16/1 230 30
PP 40/65 650 150 - 600 35 850×1450×1050 300×300×400 2 6,0 180 16/3 400 50
PP 70/65 650 150 - 600 70 850×1550×1150 350×400×500 2 8,0 200 20/3 400 80
PP 140/65 650 150 - 600 135 950×1650×1300 450×500×600 2 12,0 250 20/3 400 150
PP 270/65 650 150 - 600 270 1200×1750×1450 600×600×750 2 20,0 580 40/3 400 240
PP 540/65 650 150 - 600 540 1300×1950×1750 750×800×900 2 24,0 850 50/3 400 500
* Fan motor power of the PP 20 is 0,25 kW. For PP 40-140, all temperatures, and PP 270/65 it is 0,37 kW and for model PP 270/85 and PP 540, all temperatures, it is 1,1 kW.
**Protection may vary according to the optional accessories selected.
Subject to technical changes.

Standard furnace equipment

  • Ht40AL controller
  • Stainless steel muffle
  • Stainless steel circulation insert with long service life
  • Horizontal internal atmosphere circulation
  • Heating elements located outside the furnace space
  • 2 stainless steel shelves (except for the PP 20)
  • Manually controlled ventilation flap for cooling the furnace’s operational space
  • “K” type thermocouple
  • Contactless switching relay for noise-free operation
  • Limit switch for safe opening of the furnace
  • Door manually opened towards the side
  • Tabletop (PP 20) or free-standing variant (other types)


Optional accessories available for an extra charge

  • Ht Industry / Ht205 controller
  • Intake of protective atmosphere (manually or automatically controlled gas intake)
  • Semi-gastight furnace variant (with a special ventilation chimney)
  • Graphic temperature recorder (controller and recorder are located in custom control panel on side of furnace)
  • Automatic ventilation flap for cooling the furnace’s operational space
  • Optimisation of the temperature field for DIN 17052-1 ΔT10 °C in the internal usable space (in an empty furnace at Tmax)
  • Measuring loop calibration
  • RS232 or EIA485 interfaces including software and cabling
  • Ht-Monit set (LAN+SW interface for PC)
  • Custom stand
  • Door opening to the left or right (hydraulic sliding, pneumatically controlled)
  • Additional shelves
  • One-handed opening (for models PP 20 through PP 140 inclusive, this is standard equipment)
  • Controlled or uncontrolled forced cooling (cannot be combined with the semi-gastight furnace version)
Note: When combining accessories (at additional cost), consult with our technical office.
