Камерная печь PP для аддитивного производства up to 850 °C

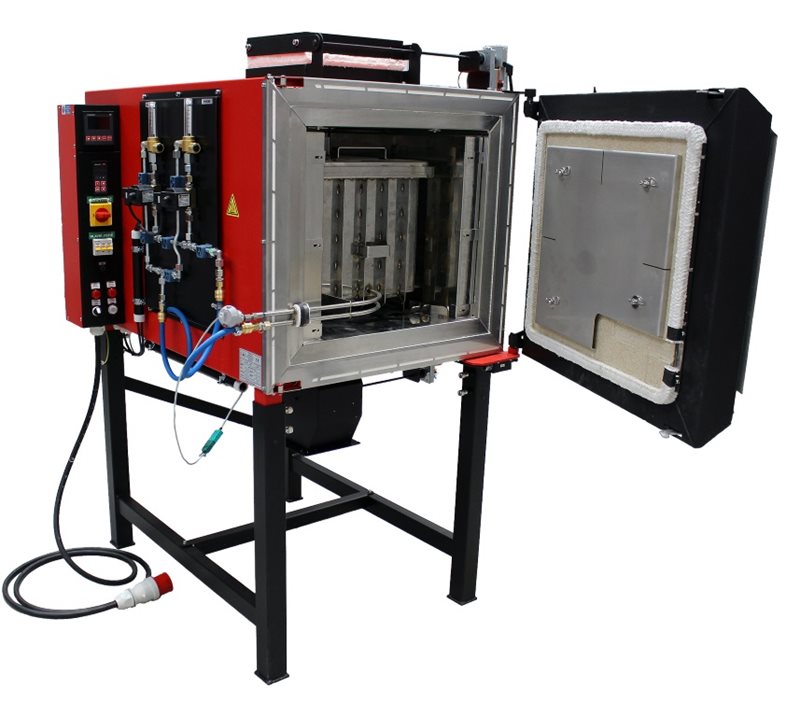

The chamber furnace for heat treatment of 3D components

The chamber furnace for heat treatment of 3D components produced by additive manufacturing technology which will ensure a process for correct metallurgical properties of metallic alloy.

Processed material type: high-strength steel, stainless steel, cobalt-chromium

Examples of platform
max. dimensions (mm)
Furnace type
100x100 PP 40/85
200x200 PP 70/85
280x280 PP 140/85
400x400 PP 270/85
550x550 PP 540/85


Steel components and nickel and cobalt-chromium alloys produced using the AM technology are processed in protective atmosphere at max. temperature 850 °C.
PP furnaces up to 850 °C are suitable for thermal processing of metals such as annealing, solution annealing, soft annealing, tempering and hardening. It is possible to change a standard furnace into the variant with protective atmosphere intake by using a protective box.

I want this furnace

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.
sales@lac.cz We’ll get back to you within 24 hours.

Печи на складе Духовки и сушилки готовы к немедленному сбору

Benefits

  • Easy to install, easy to control
  • Custom adjustments
  • Low noise
  • 24-month warranty
  • Immediate technical support
  • Forced air circulation
  • Superb conduction of heat into the charge
  • Even temperature distribution
  • Mechanical durability
  • Chemical durability
  • Industrial robustness


Heat treatment technology of additively produced charge

  • Artificial ageing
  • Relieving of internal stress
  • Hardening
  • Solution annealing

Technical parameters

Furnace equipment

Furnace type Tmax°C Recommended operating temperature range°C Volumeml External dimensions (w×h×d)mm Internal dimensions (w×h×d)mm Gas box internal
dimensions (w×h×d)mm
Input*kW Weightkg Protection**  VoltageV Max. floor
loadkg
PP 40/85 850 300 - 800 35 850×1450×1050 300×300×400 220×160×250 7,0 200 20/3 400 50
PP 70/85 850 300 - 800 70 850×1550×1150 350×400×500 270×260×350 9,0 250 20/3 400 80
PP 140/85 850 300 - 800 135 1000×1650×1250 450×500×600 320×340×400 14,0 350 25/3 400 150
PP 270/85 850 300 - 800 270 1200×1750×1650 600×600×750 470×460×550 20,0 580 40/3 400 200
PP 540/85 850 300 - 800 540 1350×1950×1800 750×800×900 620×610×700 30,0 850 50/3 400 250
* Fan motor power of the PP 20 is 0,25 kW. For PP 40-140, all temperatures, and PP 270/45, 65 it is 0,37 kW and for model PP 270/85 and PP 540, all temperatures, it is 1,1 kW.
**Protection may vary according to the optional accessories selected.
Subject to technical changes.

Standard furnace equipment

  • Gas box with protective atmosphere automatic intake
  • HT 205 controller
  • HT-Monit set (LAN+SW interface for PC)
  • Automatically controlled protective atmosphere intake for single type of gas (one flow meter)
  • K type control thermocouple + HT 40 B displaying unit
  • K type charge thermocouple + HT 40 B displaying unit
  • Furnace control switching between the control and charge thermocouples
  • Door controlled manually opening towards the right-hand side
  • One shelf (for PP/450°C)
  • Manually controlled ventilation chimney
  • Free-standing variant
  • Stainless steel muffle
  • Stainless steel circulation insert with long service life
  • Limit switch for safe opening of the furnace


Optional accessories available for an extra charge

  • evidenční software HT-MonitEV
  • HT-MonitEV registration software
  • Three- or four-colour beacon
  • Automatic intake and exhaust flap (recommended)
  • Manual intake and exhaust flap
  • Controlled/uncontrolled vacuum forced cooling
  • Circulation fan adjustable speed
  • Door manual opening upwards
  • Automatic door opening (pneumatic)
  • Door opening towards the left
  • Door electric lock
  • Switchboard cooling
  • Roller track
  • Optimisation of the temperature field for DIN 17052-1 ΔT20 °C in the internal usable space (in an empty furnace at Tmax)
  • Pulling out hook with length of 750 mm or 1,000 mm
  • Protective atmosphere automatic intake for two different quantities of gas (two flow meters) - it is recommended
  • Charging trolley
  • Cooling table
Note: When combining accessories (at additional cost), consult with our technical office.​
