SV (PE) heat shrink chamber dryer up to 150 °C

Great economic device for PE shrink film.

The SV (PE) shrink wrap chamber dryer is a device designed for the process of shrinking packaging film (e.g. PE film, LDPE, POF, PVC), which is pulled in the form of a bag over packaged goods placed on a standard EURO pallet. During this short hot-air heat process at 100–150 °C, the packaging film shrinks perfectly and adheres the film to the pallet. Waterproofing can be achieved by adding a backing film under the packaged goods (the backing film is welded to the bag).

The heat shrink chamber dryer is suitable for economic and fast shrink wrapping of loaded pallets across all the production, logistics, and storage sectors, where it will conveniently replace or complement other technology. It is supplied in two sizes - SV 2400/15 (PE) for shrinking packaging film on a pallet up to a height of 1000 mm and SV 5040/15 (PE) for shrinking packaging film on a pallet up to a height of 2800 mm (e.g. packaging of drinks, white goods and electrical appliances). As standard, it is operated with a pallet, high-lift, or low-lift truck. The work cycle is automated and is as simple as the customer requires. The stainless-steel circulating dryer insert guarantees a long equipment service life, as it is very chemically and mechanically resistant. Thanks to the well-designed circulation of the internal atmosphere, the dryer evenly distributes and shrinks the packaging film.

I’m interested in this furnace

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.
sales@lac.cz We’ll reply within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up

Benefits

  • Simple control of the work cycle with one button
  • Automatic door opening at the end of the process
  • High level of safety (obstacle sensor in the door, safety switch inside the chamber)
  • Quick cold-start time and the possibility of chamber tempering
  • Economical operation (shrinkage of LDPE film on one pallet 1.0–1.5 kW)
  • High operating capacity (200–300 pallets per shift)
  • Clear control using the touch LCD and programmable temperature controller
  • Individual programming of temperatures and shrink times according to the type and thickness of the packaging film
  • Even distribution and shrinkage of the packaging film thanks to the well-designed circulation of the internal atmosphere
  • Easy installation of the device
  • Mechanical durability
  • Chemical resistance
  • Easy service
  • Shipping within 6 weeks
  • Warranty: 24 months

Charge treatment technology

  • Shrinkage of packaging film on EURO pallets
LAC-SV-2400-1.jpg Overall view

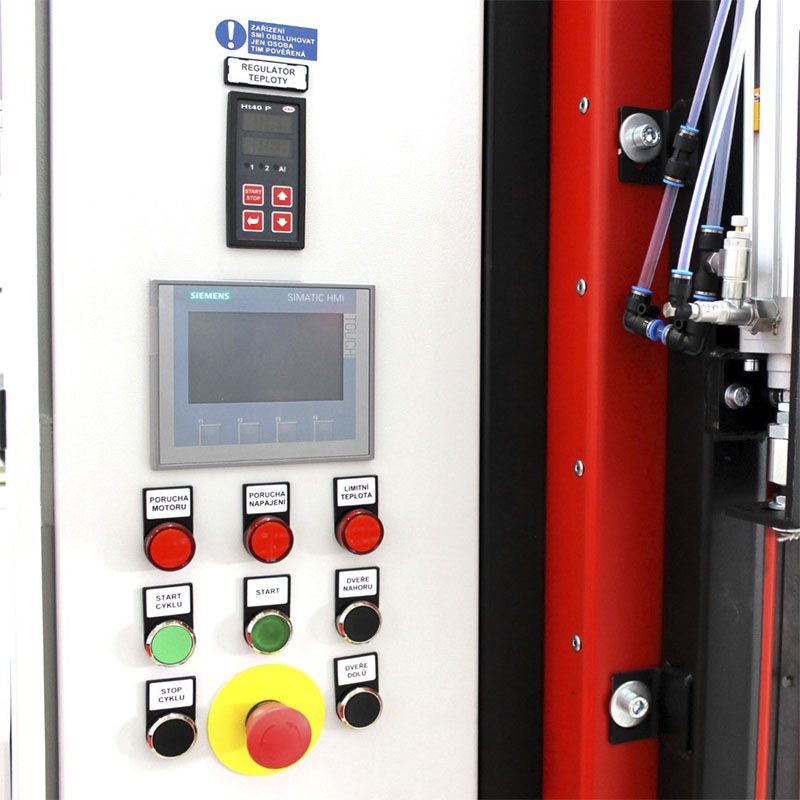

LAC-SV-2400-6.jpg Simple and clear control
LAC-SV-2400-4.jpg Floor with runners and pedestal
LAC-SV-2400-3.jpg Stainless steel circulation insert

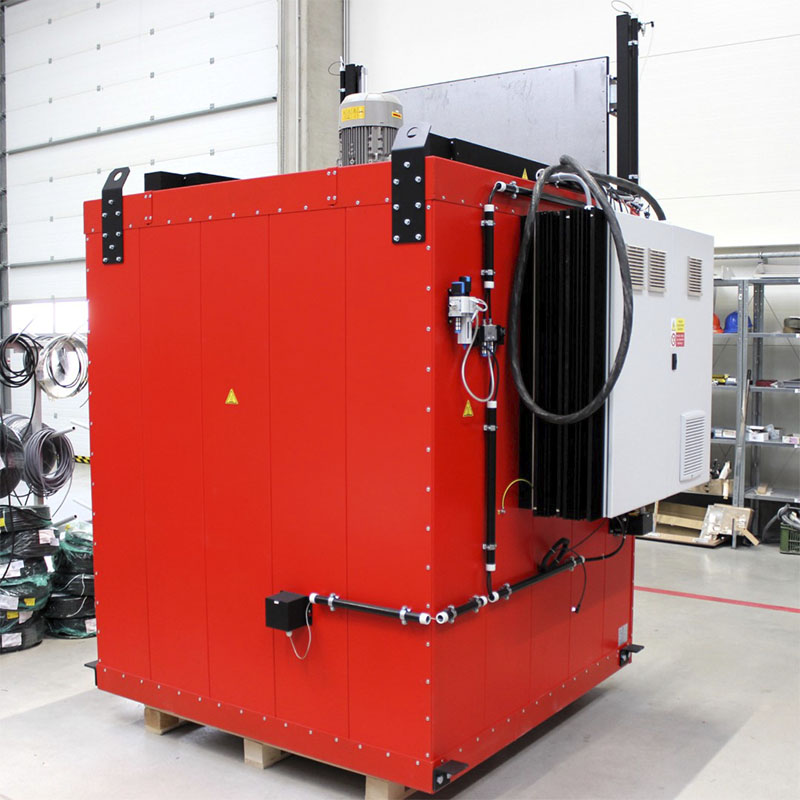

LAC-SV-2400-2.jpg Back view
LAC-SV-2400-5.jpg Safety switch inside the chamber
LAC-SV-2400-1.jpg Overall view
LAC-SV-2400-6.jpg Simple and clear control
LAC-SV-2400-4.jpg Floor with runners and pedestal
LAC-SV-2400-3.jpg Stainless steel circulation insert
LAC-SV-2400-2.jpg Back view
LAC-SV-2400-5.jpg Safety switch inside the chamber

Technical parameters

Dryer equipment

Furnace type  Tmax°C Recommended operating temperature range °C Volumel External dimensions (w × h × d)mm Internal usable dimensions (w × h × d)mm Weight
kg
Input
kW
VoltageV Protection*A Max. load capacity of bottomkg
SV 2400/15 (PE) 170 100-150 2400 2100×2850×1950 800×1000×1200 1400 48 400 100/3 600
SV 5040/15 (PE) 170 100-150 5040 2000×6600×2200 800×2800×1200 1400 60 400 100/3 1300
*Protection can vary depending on accessories added (at additional cost).
Subject to technical changes.


Standard equipment

  • Ht40P controller
  • Programmable LOGO relay with KTP 400 operator panel
  • Resistance heating (heating elements)
  • Thermostat (used as limit unit)
  • "K" type thermocouple
  • Door obstacle sensor – door movement is stopped when the sensor is activated
  • Safety switch inside the dryer chamber – opens the door, stops operation
  • Circulation of the internal atmosphere (circulation fan)
  • Mineral fiber mat insulation
  • Stainless steel circulating insert with a long service life
  • Pneumatic door opens upwards
  • Floor with entrances for a pallet truck and a pedestal for placing a pallet
  • Contactless switching relay for noiseless operation
  • Controller cabinet on the side of the dryer


Optional accessories available at additional cost

  • Atypical dimensions (higher EURO pallet or atypical pallets)
  • Doors on both sides of the dryer for continuous operation
