PKRC gastight chamber furnace for additive manufacturing up to 950 °C

Gastight furnaces with internal atmosphere circulation for heat treatment of 3D components

Gastight furnaces with internal atmosphere circulation for precise temperature distribution and defined protective atmosphere (argon, nitrogen, moulding gas etc.). Ensures a process for correct metallurgical properties of metallic alloy made by 3D printing.

Processed material type: ​titanium, nickel alloys

Examples of platform
max. dimensions (mm)
Furnace type
200x200 PKRC 55/95
300x300 PKRC 180/95
300x500 PKRC 350/95
400x400 PKRC 350/95
400x800 PKRC 350/95

Titanium parts manufactured by AM technology, which are processed in a protective atmosphere at temperatures up to 800 °C. AM nickel alloys processed to relieve stress at 890 °C.

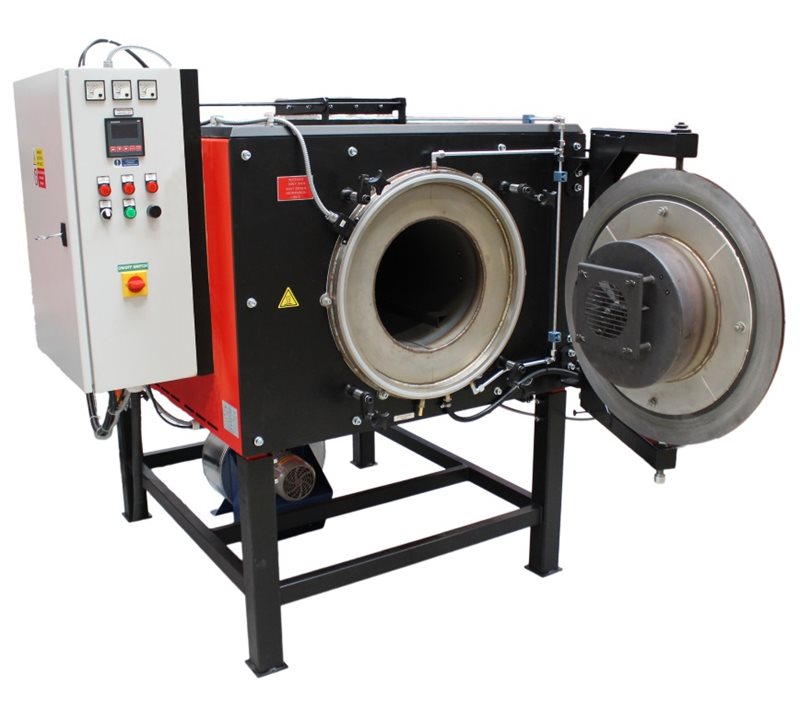

PKRC furnaces are equipped with a hot-wall retort, protective atmosphere inlet and vacuum pump. They are suitable for heat treatment of metals and due to the circulation of the inner atmosphere they are characterized by excellent temperature distribution.

I want this furnace

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m. We’ll reply within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up


  • Installation of facilities in the Czech Republic for free
  • Custom adjustments
  • Noise-free operation
  • 24-month warranty
  • Immediate technical support
  • Even temperature distribution
  • Mechanical durability
  • Chemical durability
  • Industrial robustness

Heat treatment technology of additively produced charge

  • Relieving of internal stress

Technical parameters

Furnace equipment

Furnace type  Tmax°C Tmax for long-term operation
Volumel External dimensions (w×h×d)mm Internal dimensions (ød×h)mm Retort
operational dim.
with a shelf(w×h×d)**mm
InputkW Weightkg Protection*  VoltageV Max. floor
PKRC 55/95 950 850 24 1400×1830×1450 267×410 225×135×410 13 600 25/3 400 150
PKRC 180/95 950 850 83 1700×1960×1670 412×620 325×245×620 29 1100 50/3 400 200
PKRC 350/95 950 850 225 1915×2080×2005 544×900 450×290×900 50 1380 80/3 400 300
* Protection may vary according to the optional accessories selected.
** These dimensions are variable with respect to a retort circular cross section.
Subject to technical changes.

Standard furnace equipment

  • Ht205 controller
  • HT-Monit set (LAN+SW interface for PC)
  • Heating spirals on ceramic tubes outside the furnace’s operational space
  • Door sealing
  • Manually controlled ventilation and suction flaps for cooling space outside of the retort
  • Door manually opened towards the side
  • Limit unit
  • Automatically controlled intake of protective atmosphere for one type of gas (one flow meter)
  • Manovacuometer for checking overpressure in the retort
  • Vacuum pump for atmosphere exhaustion from the retort in cold conditions
  • Adapter for connecting a G ½″ rubber hose to the cooling of the collar thermistor for checking the temperature of the flange and detection ofcoolant presence in the collar of the retort
  • Overpressure safety valve for releasing protective gas from the retort with an overpressure of 4–6 mbar
  • Ammeters for checking the state of the heating elements (numbers based on number of phases connected to the heating)
  • K type control thermocouple + HT 40 B displaying unit
  • K type charge thermocouple + HT 40 B displaying unit
  • Furnace control switching between the control and charge thermocouples
  • Contactless switching relay for noise-free operation
  • Limit switch for safe opening of the furnace
  • Free-standing variant

Optional accessories available for an extra charge

  • HT-MonitEV registration software
  • Replacement retort made of refractory stainless steel
  • Controlled forced cooling (cooling along a selected cooling curve)
  • Automatic intake and exhaust flap (recommended)
  • Optimisation of the temperature field for DIN 17052-1 ΔT20 °C in the internal usable space (in an empty furnace at Tmax)
  • Second gas automatic supply
  • Three-colour beacon
  • Four-colour beacon with siren

Note: When combining accessories (at additional cost), consult with our technical office.
