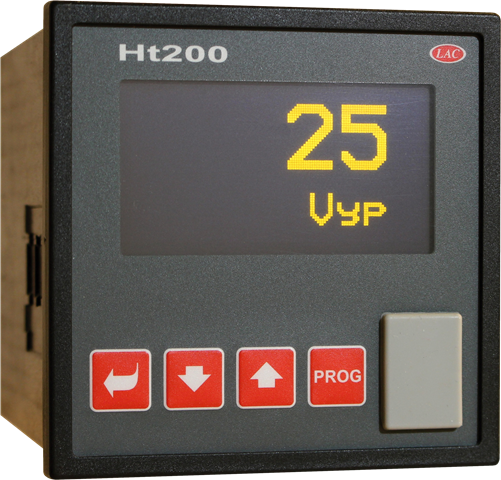

Ht200

Basic Parameters

• 30 programmes, each with 25 steps
• 1 measuring input
• 2 digital inputs
• 7 outputs (2 regulation, 4 auxiliary, 1 alarm)
• 2 communication lines
• monitoring using the HtMonit programme
• USB interface
• data logger for measuring values, max. 10,000 values
• message data logger, max. 2,000 values

Programme launch:

• via keyboard
• via digital input
• via communication line

Other features:

• change to the programme during its operation
• programme operation indicator on front panel
• Master/Slave system, cascading regulation
• automatic setting of regulation parameters
• locking of the device’s settings against unqualified interventions
