Heat resistance testing furnace up to 1100 °C

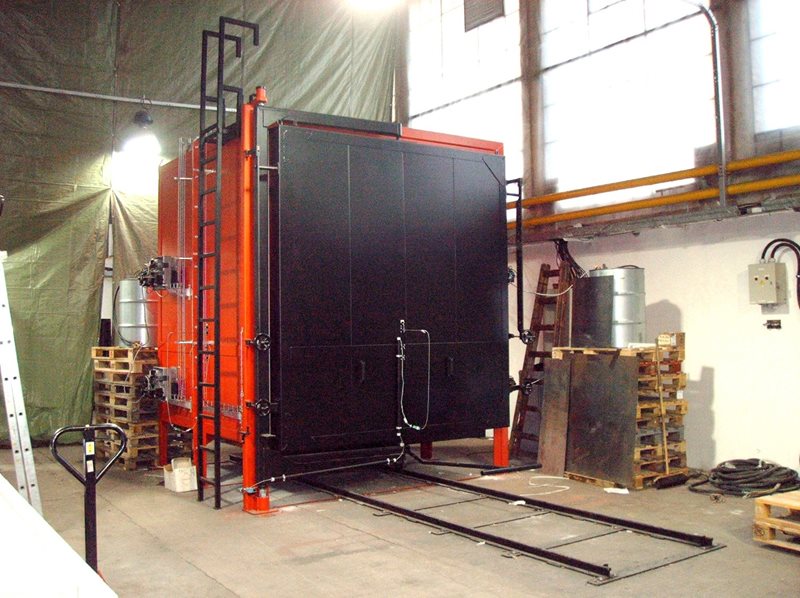

Carriage chamber furnace designed for testing the thermal resistance of safes

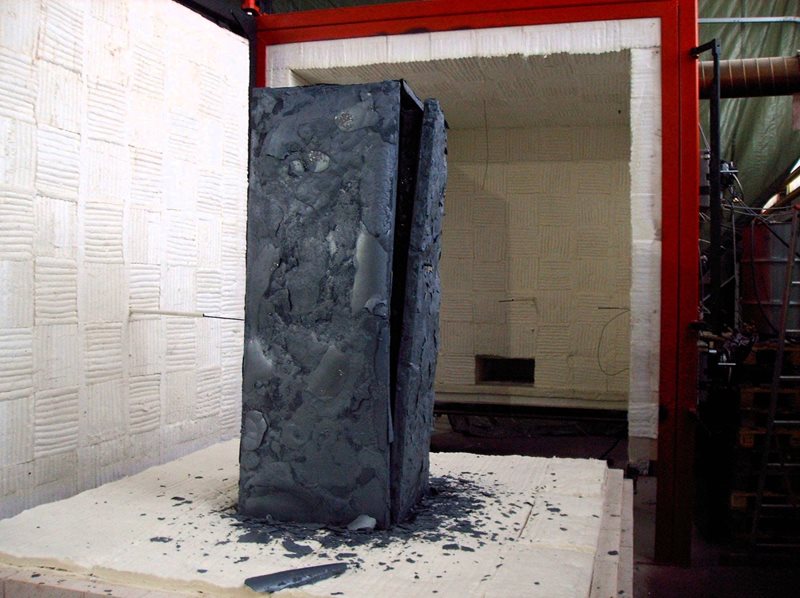

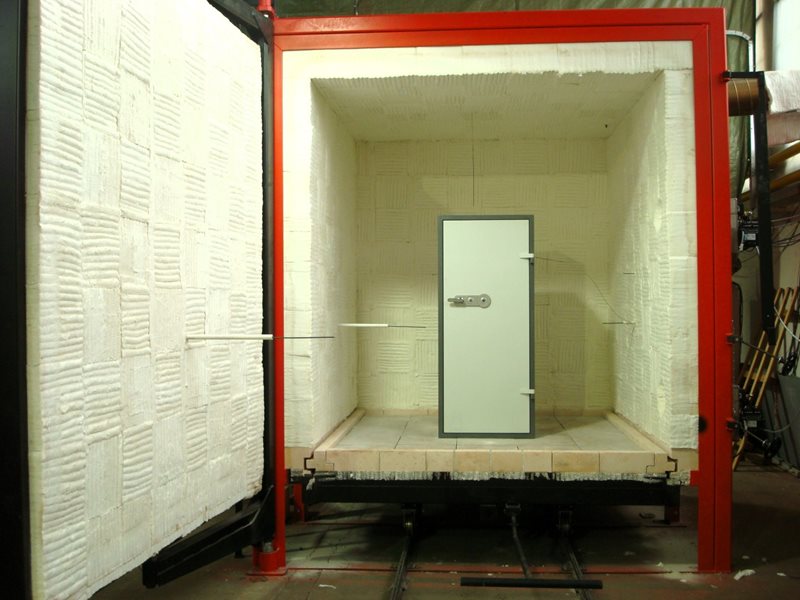

The furnace is designed for testing the heat resistance of safes. The safes are placed on a trolley, which is manually loaded into the furnace working area. The length of the rails attached to the floor is 5.9 meters.

The furnace is heated by a system of four oil burners. Light fuel oil is used as fuel. The control system is located in a separate switchboard.

I want something like this

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.

sales@lac.cz We’ll get back to you within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up

External dimensions (w×h×d): 3700×3800×3300 mm
Internal dimensions (w×h×d): 2300×2750×2500 mm
Max temperature: 1100 °C
Burner power: 120 kW
Fuel: light fuel oil
Control system: INDUSTRY controller
Charge: security vaults
Place and date of installation: Bulgaria, 2010
