SV 39600/25 chamber dryer 250 °C

Furnaces for curing composite components

This chamber dryer with forced air circulation is made for curing composite components. A composite is a multiple-element material with a foundation of resin hardened with carbon or glass fibres. These are very modern materials that are seeing ever-greater use in the automotive and aerospace industries and in the manufacturing of supplies for athletics, rocketry, skiing, cycling, and even playground slides. Composite laminate is perhaps the best-known composite. It is used for making automobile superstructures, for instance.

We have divided the chamber of the dryer into multiple heating zones to achieve even temperature distribution, which is often a requirement in this kind of heat treatment. We have also furnished the dryer with forced air circulation for better conduction of heat to the charge.

This is a facility that we can completely customise to your needs thanks to its simple modular construction. Thus, we can easily adjust not only its structural dimensions, but also its internal usable dimensions to reflect the nature of your charge.

During heat treatment of composites, potentially hazardous substances are sometimes produced; if needed, we also furnish these furnaces with a sensor for monitoring concentrations of explosive substances (METREX).

I want something like this

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.
sales@lac.cz We’ll get back to you within 24 hours.

What’s great about this facility

  • Powerful forced air circulation
  • Low thermal losses
  • Quick run-up to temperature
  • Even temperature distribution

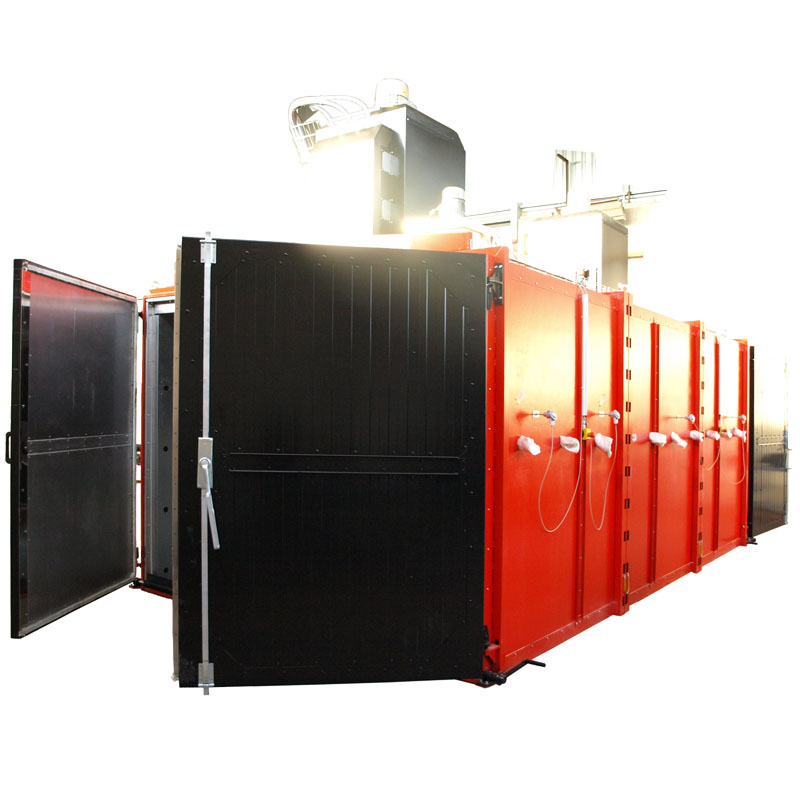

SV-39600_25-chamber-furnace-for-curing-composite-components.jpg SV 39600/25 chamber furnace for curing composite components
SV-39600_25-chamber-furnace-for-curing-composite-components.jpg SV 39600/25 chamber furnace for curing composite components

Technical parameters

  • Max. temperature: 250 °C
  • Internal dimensions (w × h × d): 3000 × 2200 × 6000 mm
  • External dimensions (w × h × d): 3400 × 3800 × 6300 mm
  • Max. charge weight: 3500 kg
  • Heating input: 320 kW
  • Installation place and year: Czech Republic, 2011
Over 13,000 furnaces manufactured
Our own team of maintenance technicians
25-member design team
6 custom projects per month
Testing of your specific charges
