Robust ovens with chain conveyor suitable for solid truck brake pads

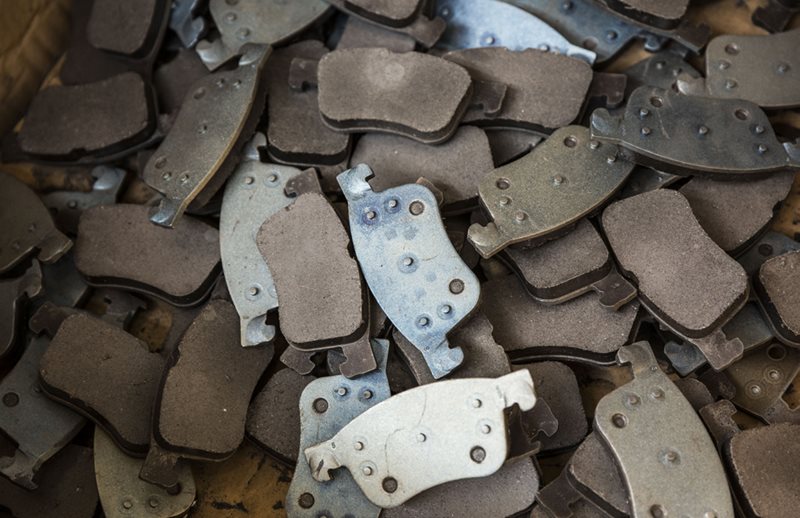

We have manufactured several continuous ovens with a chain conveyor for the curing process of binders and adhesives on vehicle brake plates.

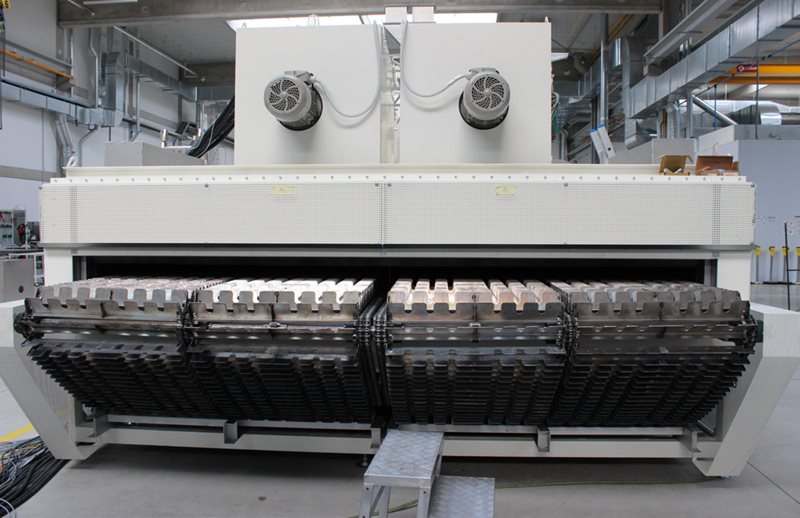

One of these furnaces is the continuous furnace SV 6900/03. This continuous furnace consists of three heating zones, each with an independent fan, heating and control loop and one cooling zone. Heating and circulation of the furnace are ensured by fan units placed on the furnace ceiling, the furnace can be equipped with thermocouples or non-contact temperature sensors for monitoring the temperature of the charge.

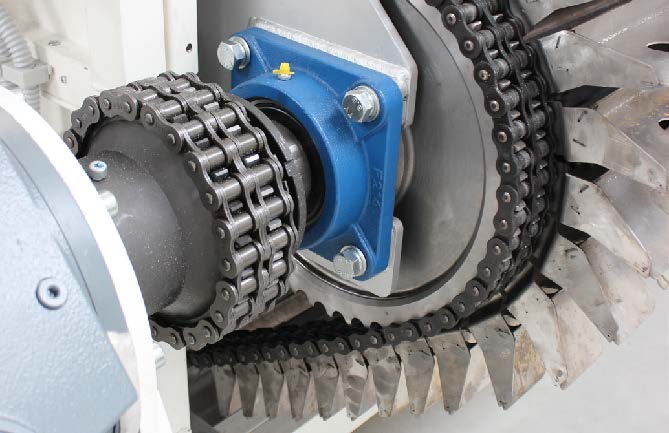

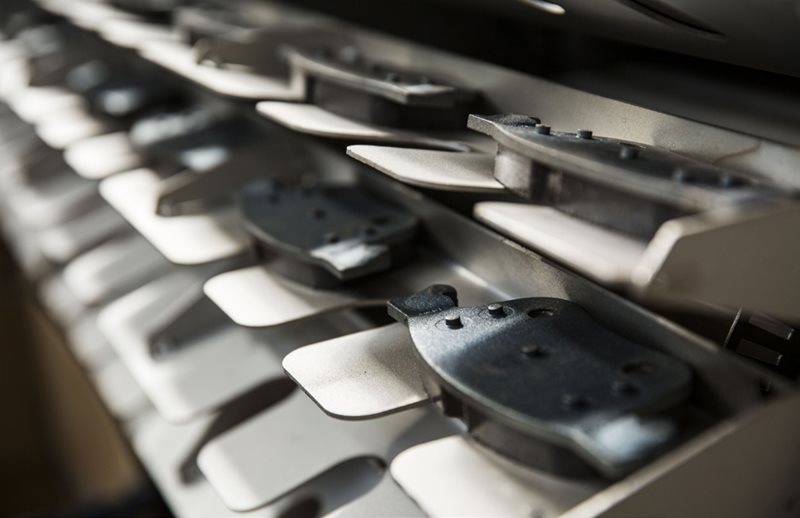

The furnace has a specially designed conveyor where individual brake plates are placed in pockets that slide through the furnace. One row on the conveyor can hold 16 brake plates.
