Bogie-hearth furnace for annealing steel parts up to 900 °C

VKT 35000/09

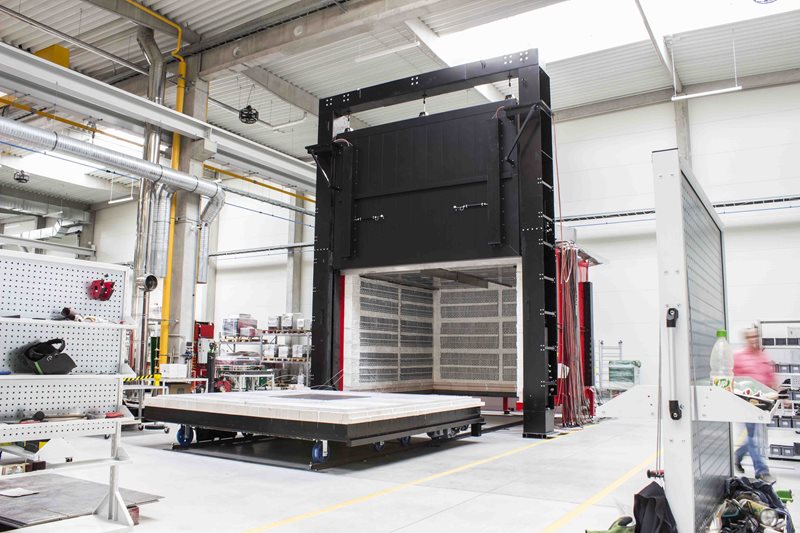

This electrically heated car chamber furnace is, thanks to its robust steel construction, particularly suitable for heavy-duty operations in engineering plants.

The charge is loaded onto an electrically powered car , which then drives it into the furnace chamber. The furnace is heated from 5 sides, is equipped with a forced cooling system of the furnace chamber and electro-hydraulic doors opening upwards. The loading surface of the car is covered with steel refractory plates. The furnace is used for various types of heat treatment of the charge at temperatures around 900 °C.

I want something like this

+420 547 230 016 Call us from 8:00 a.m. to 2:00 p.m.

sales@lac.cz We’ll get back to you within 24 hours.

Furnaces in stock Furnaces and dryers ready for pick-up

Bogie-hearth furnace VKT 35000/09

Tmax: 900 °C
Temperature distribution uniformity: +/- 10°C
Internal volume: 35,000 l
Internal dimensions of the furnace chamber (w x h x d): 3,800 x 2,400 x 3,800 mm
External dimensions (w x h x d): 5,000 x 6,600 x 5,000 mm
Weight: 12,000kg
Max. load capacity of the car: 10,000 kg
Power consumption: 450 kW
Voltage: 3/PEN 400/230V AC 50Hz
Control system: PLC SIMATIC S7-1200 with touch screen
